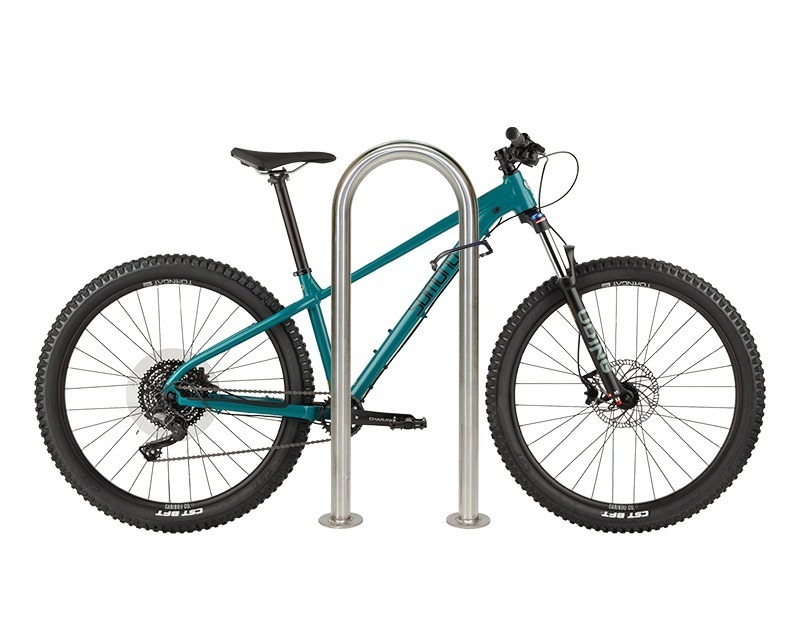

SURF Bike Rack

SURF Bike Rack

SURF Bike Rack

Model Number:

SFBRP-3 (3 Space Aluminum), SFBRP-5 (5 Space Aluminum), SFBRP-7 (7 Space Aluminum) SFBRP-3-SS (3 Space Stainless), SFBRP-5-SS (5 Space Stainless), SFBRP-7-SS (7 Space Stainless)

Designer Notes

The commercial grade SURF bicycle racks improve on a traditional bike rack design by incorporating materials and finishes that complement the client’s needs for durability and longevity. There are three sizes to choose from with each available in either marine grade structural aluminum or corrosion resistant high strength stainless steel.

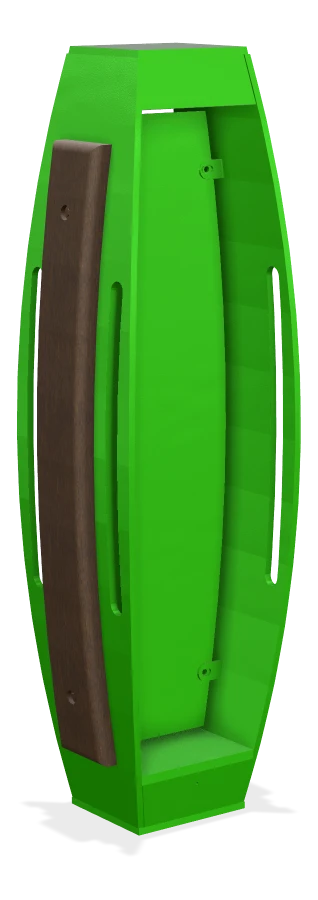

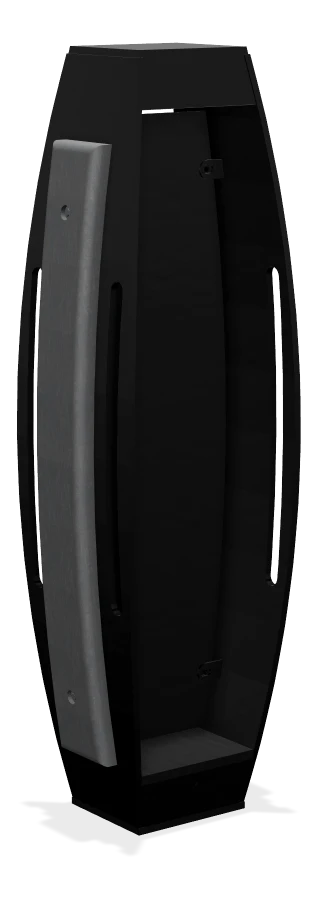

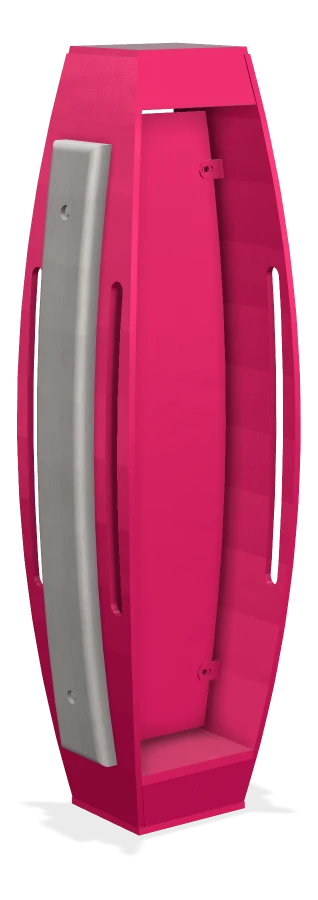

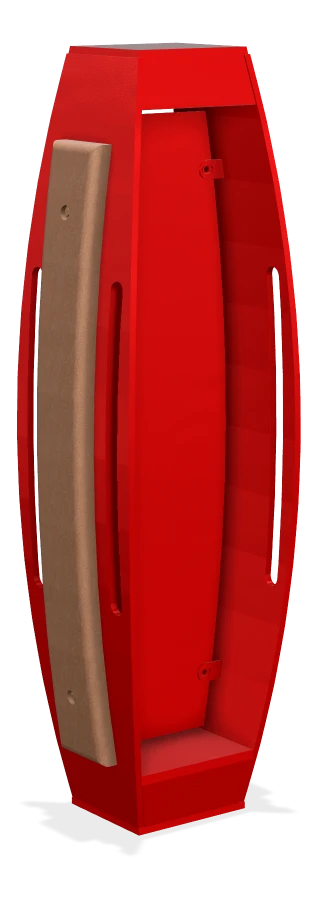

Standard Powder Coat Colours *

*Due to variations in the types of screen resolutions available, colors represented here may vary slightly from the actual colors. Please contact Wishbone if you would like to have actual samples.

Video

Material Specifications

Marine Grade Aluminum Frame
Stainless Steel Hardware
Super Durable Powder Coating
100% Recycled Plastic Slats
Western Red Cedar
IPE Hardwood
Modified Pine

Customized Solutions

Custom Powder Coating
(Setup Charges May Apply)
In-ground Mounting
INST-1 Stainless Steel Bolt-Down Kit (Installation Example)

Product Dimensions

SFBRP-3 (3 Space Aluminum)

Height: 38.5 inches / 98 cm
Length: 16.5 inches / 42 cm
Depth: 4.5 inches / 12 cm
Weight: 15 lbs / 7 kg

SFBRP-5 (5 Space Aluminum)

Height: 38.5 inches / 98 cm
Length: 40.5 inches / 103 cm
Depth: 4.5 inches / 12 cm
Weight: 25 lbs / 11.5 kg

SFBRP-7 (7 Space Aluminum)

Height: 38.5 inches / 98 cm
Length: 66.5 inches / 169 cm
Depth: 4.5 inches / 12 cm
Weight: 37 lbs / 17kg

Recycled Content

100% Recyclable

Downloads

Surf-Bike-Rack-Spec-Sheet.pdf

SURF Bike Rack SFBR-5 3D Viewer.pdf

SURF Bike Rack SFBR-5.dxf

SURF Bike Rack SFBR-5.pdf

SURF Bike Rack SFBR-5.rfa

SURF Bike Rack SFBR-5.skp

SURF Bike Rack SFBRG-7 3D Viewer.pdf

SURF Bike Rack SFBRG-7.dxf

SURF Bike Rack SFBRG-7.pdf

SURF Bike Rack SFBRG-7.rfa

SURF Bike Rack SFBRG-7.skp

Surf Bike Rack SFBRP-3 3D Viewer.pdf

Surf Bike Rack SFBRP-3.dxf

Surf Bike Rack SFBRP-3.pdf

Surf Bike Rack SFBRP-3.rfa

Surf Bike Rack SFBRP-3.skp

Wishbone - bicycle parking standards and guidelines.pdf

Cleaning and Maintenance Instructions

Wishbone Design Ethic

Wishbone Limited Warranty

Renew Your Recycled Plastic

The Base In-ground Anchor

Wishbone Standard Colours

Recycled Plastic Test Data Documentation

Modified Pine Test Data Documentation

CADdetails: CAD, BIM, and 3D Downloads

Complimentary Products In This Series
