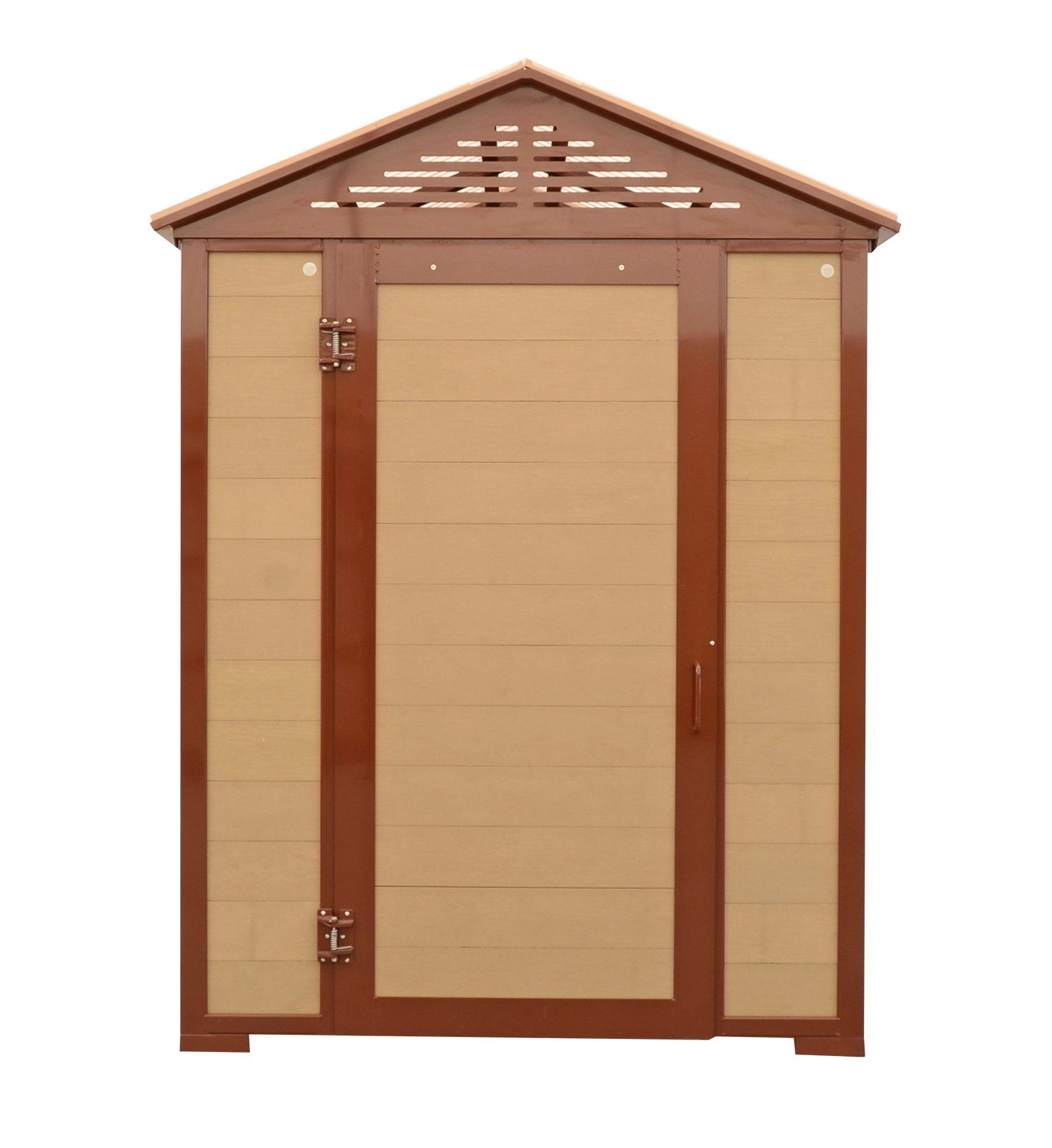

The "JOHN" Wheelchair Accessible ADA Building

Model Number: PTR-80-WC

PTR-^

Designer Notes

The “John” Wheelchair Accessible Outhouse is a building that was designed at the request of some parks departments looking for an alternative to traditional wood buildings. The “Wheelchair Accessible ” Version, as the name implies, is a larger version of our “Jumbo” version and meets the ADA requirements in the US for wheelchair accessibility.

The “John” addresses many of the issues typically associated with outdoor latrine buildings in semi-remote locations-transportation and handling, assembly, and the use of materials that require minimal if no maintenance over several years in a wide range of diverse environments. The “John” meets and exceeds these expectations while providing a very comfortable and memorable user experience. Strategically designed as a modular system, the individual components can be easily carried into semi-remote locations and be put together with minimal tools at a fraction of the traditional wood and concrete alternatives. The building is made from sturdy lightweight powder coated aluminum components, making it resistant to corrosion. The tongue-in-groove recycled plastic lumber slats will not rot or absorb moisture and can be sprayed with bleach or disinfectant without damage. After cleaning, excess water simply drains out the sides from the raised walls. They fit seamlessly into channels with only a few hidden fasteners, also making the unit theft and tamper proof. Lack of lighting normally associated with these types of structures has also been addressed with a translucent one-piece roof. It provides plenty of light but it does not compromise its strength and acts as an effective barrier against sun, wind and rain. The one-piece roof structure caps the entire unit providing ample protection from the elements and locks the whole structure together making it extremely solid. With most of the products we develop, the naming of it usually has a meaning. The name John, although seemingly quite applicable for the application, is actually named after the CEO and President of Wishbone. It is the only product, of the dozens that we have, where his name actually worked.

Available Recycled Plastic Lumber Colours

Black

Black

Grey

Grey

Redwood

Redwood

Sand

Sand

Walnut

Walnut

Product Specifications

Produit Re-Plast 100% Recycled Plastic Tongue and Groove Boards

  • Made from post-consumer and post-industrial waste plastic, the material is ecologically friendly and attractive. For this application the boards provide maximum durability with minimal maintenance required over their lifespan. Boards will not split or warp, and will not absorb moisture, making them easy to clean with disinfectants, and in turn, keep germs and odors under control.
  • Colours Available: Sand, Gray, Walnut, Redwood,  Black

Durable Powder Coated Aluminum Frames

  • Standard Colours: Brown Slate, Victor Ridge II, Nordic Lichen, Timeless Rust, Grey Gold, Textured Silver, Precious Sand, Groovy Red, Black Textured, Earth Clay, Noble Bronze, Modern Khaki

Long Lasting Stainless Steel Hardware

Heavy Duty Door Hinge Hardware

Super Durable UV stabilized  Polycarbonate Roof

Adjustable Aluminum Vent Stack Support

Easy assembly for 2 people in less than 2 hours

Shipping Dimensions

Ships unassembled on a 84L x 72W x 36H pallet. Total Weight 1650 lbs

Customized Solutions

  • Custom Powder Coating
    (Setup Charges May Apply)
  • Toilet, urinal, toilet paper dispenser, sanitizer dispenser and vent stack are not included. They can be provided if requested.
  • Corner Urinal in White  Model #WCU-14
  • All Aluminum Floor. (ALF-WC)
  • Waterless Toilet System by Toilet Tech. Find out more here at https://www.ToiletTech.com

Product Dimensions

Height: 96.25 inches / 2441 mm
Depth: 80 inches / 2032 mm
Width: 68 inches / 1727 mm
Weight: 1650 lbs / 748 kg

Recycled Content

  • Recycled Content By Weight: 65%
  • 100% Recyclable
